Midi-Excavators

KX085-5

KG
Machine Weight with mono boom (kg)
8392kg
Max Digging Depth (mm)
4600mm
Overall width (mm)
2200mm
Engine output (kW)
46.5kW

ADVANCED PERFORMANCE. SUPERIOR OPERATION.

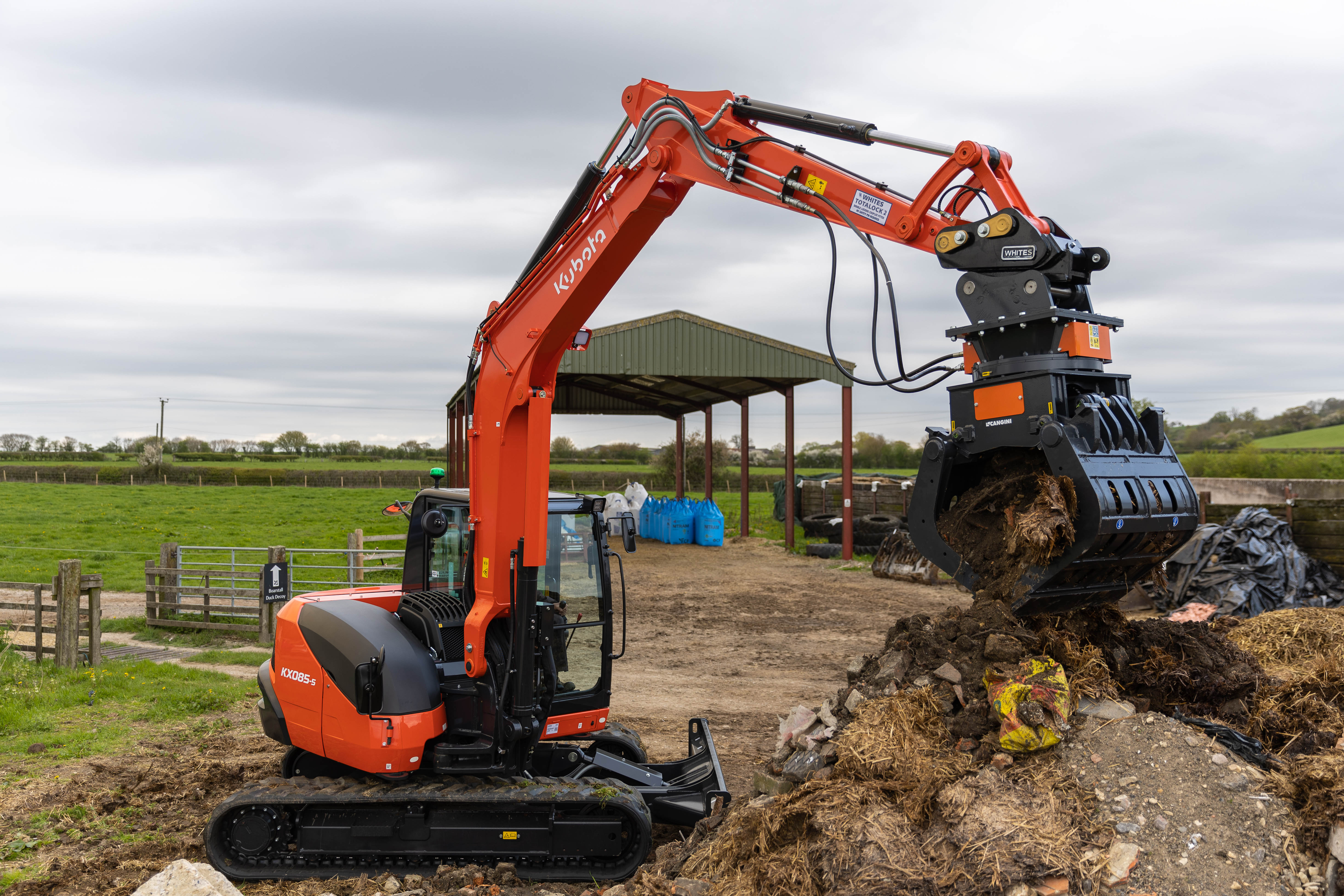

 The Kubota KX085-5 delivers the ultimate in operator comfort and high productivity.

Together with Kubota’s proven high power, low emission direct-injection engine and robust, reliable hydraulics, there’s a host of built-in operational and safety features as standard, as well as a new ultra-quiet spacious cab for enhanced operator comfort and productivity across a wide range of jobs.

Information and instruction by EU Stage V

Fluorinated greenhouse gases

ENVIABLE POWER

Kubota’s high power, low emission Stage V direct-injection, turbo diesel engine is equipped with CRS and improved DPF for reduced maintenance. An Engine Auto-Stop system is fitted as standard for reduced noise and emissions when idling.

HIGHLY PRODUCTIVE

Kubota’s load-sensing 2-pump system ensures smoother operation regardless of load size and is equipped with two electronically controlled auxiliary circuits plus an automatically activated 3rd line hydraulic return.

EXTREMELY VERSATILE

The dozer blade float function makes a clean ground surface after backfilling. And this is just one of the features that makes the Kubota KX085-5 so versatile.

POWERFUL PERFORMER

An outstanding arm reach of 7.33m delivers an impressive digging force at depths up to 4.6m, enabling the operator to dig faster and more efficiently even in the toughest of conditions.

CLASS-LEADING COMFORT

The spacious, quieter cabin is designed for optimum operator comfort and efficiency, with a wider entrance, enhanced legroom with adjustable air-suspension seat and joystick console positions. A new 7” LCD display with a user-friendly interface with right-side positioned console contribute towards improved visibility and high productivity. Kubota Tracking System is fitted as standard.

SAFETY BUILT-IN

Built-in operational safety features include an integrated rear-view camera, LED worklights as well as Roll-over Protection and Operator Protective Guard as standard.

KX085-5

Take your choice

Model
With mono boom
With 2-piece boom
Machine Weight (kg)
8392
9097
Power (kW/PS)
46.5 / 63.2
46.5 / 63.2
Max Speed (km/h)
4.8
4.8
Max Dig Depth (mm)
4600
4590
Max Reach (mm)
7330
7820
Max Digging force Arm/bucket (kN)
38.1 / 65.2
38.1 / 65.2
Aux Flow 1
100 l/min @ 210 kgf/cm²
100 l/min @ 210 kgf/cm²
Aux Flow 2
55.8 l/min @ 210 kgf/cm²
55.8 l/min @ 210 kgf/cm²
Overall width (mm)
2200
2200
Transport length (mm)
6450
6940
