Spreaders DSX

Spreaders

The high capacity model.

The X for larger working widths

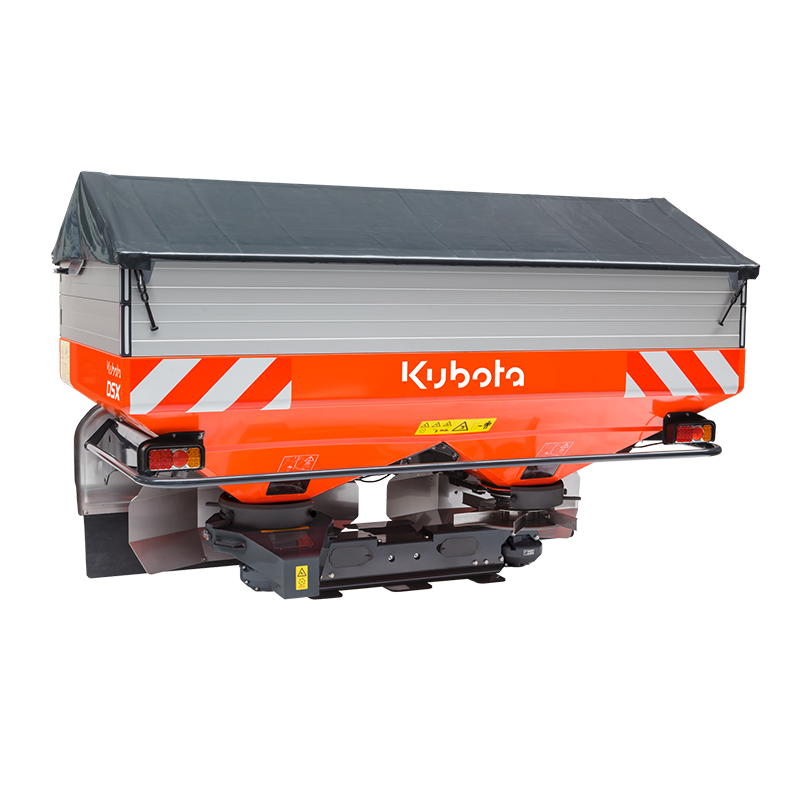

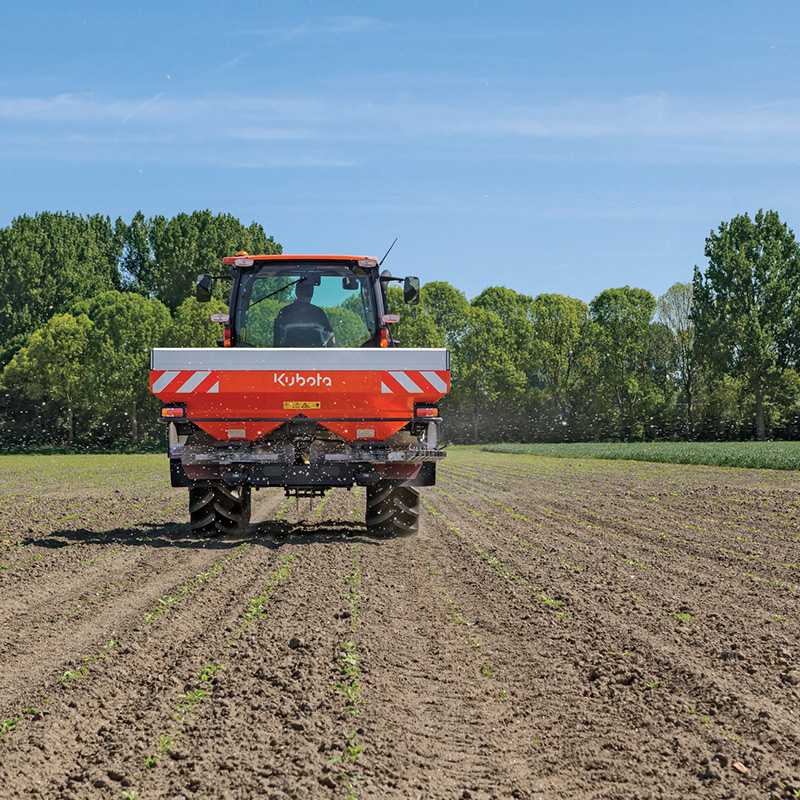

The DSX is the high capacity model of the Kubota spreader range. The heavy duty construction of the DSX makes it possible to carry up a maximum of 3.450 or 3.900 litres of fertiliser with 3 extension rims. Easy setting and adjustment can be done with the FlowPilot on each spreading disc. An innovative drive line to each disc ensures gentle agitation due to the “slow rotating” agitator system, which runs at 15% of the spreading disc speed. Both discs can be shut off independently to spread half the working width, essential for preventing lodging in tapering headlands.

The Advantages:

RotaFlow spreading system
FlowPilot for quick and easy adjustment
Easy border spreading systems available
Standard and optional equipment available to fulfil your requirements
Comfort Control II to operate the spreader from the closed tractor cab
XHD Lift Vanes provide a high quality spreading pattern and durability for the farmer.

View brochure Download technical document

Find a dealer

Locate me

Technical specifications

DSX (275 cm)	DSX1500	DSX2150	DSX2800	DSX3450
Hopper capacity (l)	1500	2150	2800	3450
Filling height (cm)	119	138	157	176
Width (cm)	275	275	275	275
Filling width (cm)	269	269	269	269
Empty weight (kg)	500	530	560	590
Spread width (m)	12-54*	12-54*	12-54*	12-54*
Output (kg/min)	10-320	10-320	10-320	10-320

DSX (290 cm)	DSX1875	DSX2550	DSX3225	DSX3900
Hopper capacity (l)	1875	2550	3225	3900
Filling height (cm)	119	138	157	176
Width (cm)	290	290	290	290
Filling width (cm)	284	284	284	284
Empty weight (kg)	515	545	575	605
Spread width (m)	12-54*	12-54*	12-54*	12-54*
Output (kg/min)	10-320	10-320	10-320	10-320
