Spreaders DSM-W PRO

Spreaders

For precise spreading in all conditions.

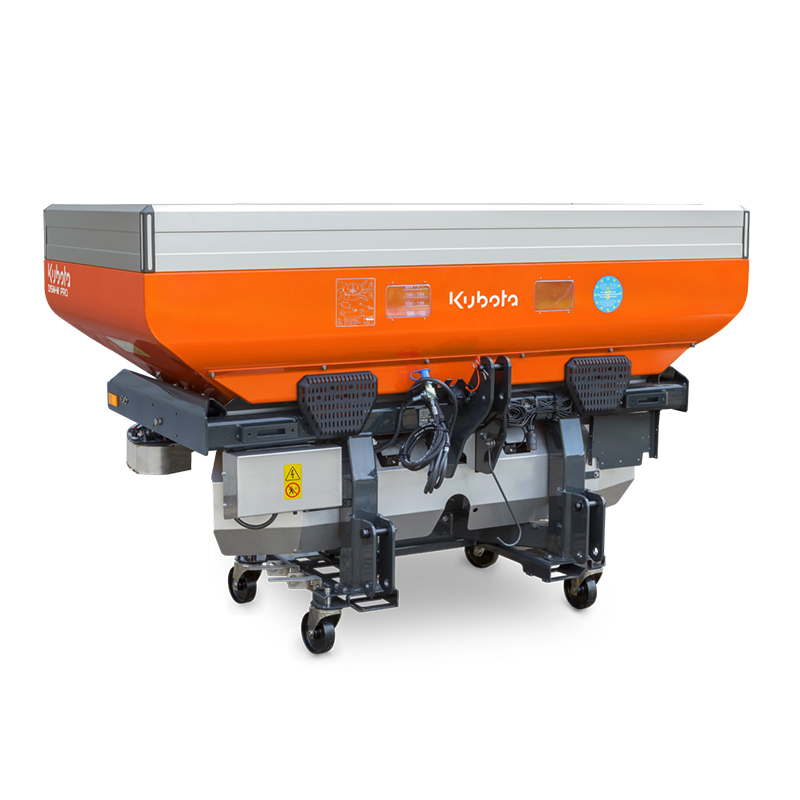

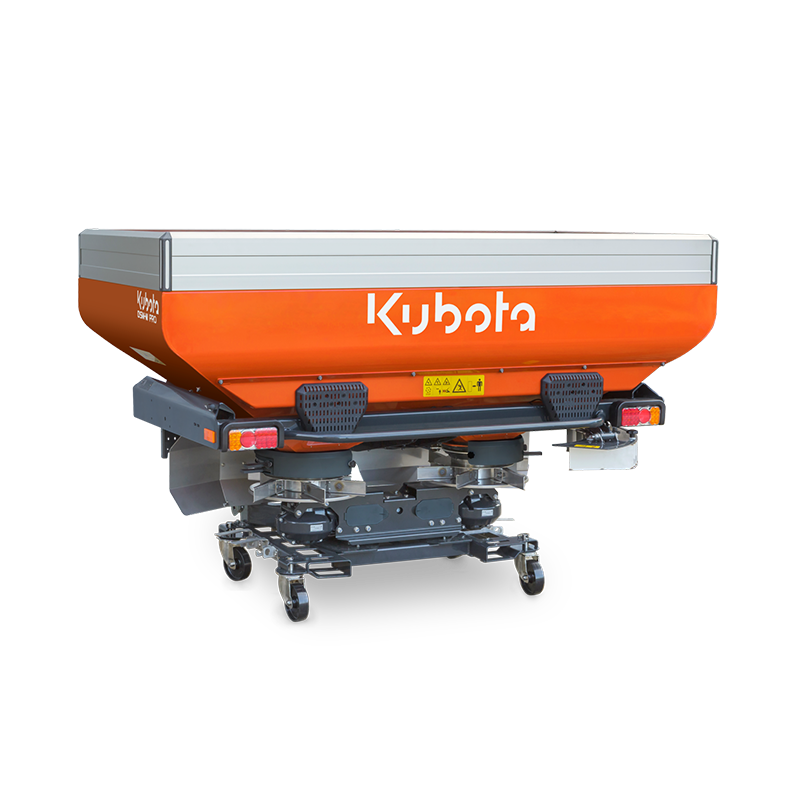

The Kubota DSM-W PRO fits perfectly in the medium sized market segment with a compact design and high capacity volume of maximal 2800 litres. It is an ISOBUS compatible weighing spreader for precise spreading in all conditions and very useful on mixed farms. The heavy duty frame with 4 load cells and reference sensor is developed for intensive use of the spreader. Accessories like mudguards, side step or parking frame are optional available to increase user comfort. The Basic Section Control software adjusts the dosing system by a GPS positioning system to optimise overlap and coverage with a minimum of over and under dosing. This results in a reduction of fertiliser and an increase of yield. This means a simple way to reduce the over dosing on the headland or irregular shaped fields by increasing the number of sections.

The Advantages:

• RotaFlow spreading system
• Weighing system with four weigh cells and reference sensor
• FlowPilot for quick and easy adjustment
• Border spreading is easy!
• ISOBUS 11783 compatible for easy plug and play
• Possible in combination with IsoMatch GEOCONTROL
• Maximise your output with Basic Section Control

View brochure

Find a dealer

Locate me

Technical specifications

DSM-W PRO	DSM-W PRO 1300	DSM-W PRO 1800	DSM-W PRO 2300	DSM-W PRO 2800
Hopper capacity (l)	1300	1800	2300	2800
Filling height (cm)	113	132	151	170
Width (cm)	245	245	245	245
Filling width (cm)	239	239	239	239
Empty weight (kg)	480	505	530	555
Spread width (m)	10-24 (27-33)*	10-24 (27-33)*	10-24 (27-33)*	10-24 (27-33)*
Output (kg/min)	10-320	10-320	10-320	10-320

_{*Dependent on type of fertiliser and vanes.}
